Smoke Detector with Wireless Network Function Sr
Basic Info.
Model NO. | SR-820PHM-AC |
Interconnection | up to 40 PC Smoke Detectors |
Sending Frequency | N/a |
Radio Distance | N/a |
Code Form | N/a |
Type for System | Interconnected Smoke Alarm |
Operating Voltage | AC110/220V(9V Backup Battery) |
Name | Smoke Detector with Wireless Network Function Sr-8 |
Certificate | Ce Approval |
Color | White |
Transport Package | Carton |
Specification | ABS |
Trademark | SUMRING |
Origin | China |
HS Code | 8531901000 |
Production Capacity | 50000 PCS/Month |
Product Description

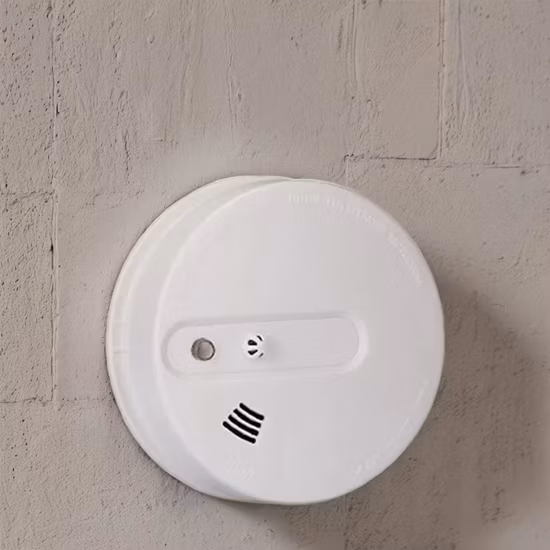

Smoke Detector with Wireless Network Function Sr-820 Series
Smoke Detector
Smoke detector SR-820 series
SR-820PHS Photoelectric Smoke alarm (independent)
SR-820PHM-AC Wired interconnected Photoelectric smoke alarm
SR-820PHW-AC(AC Power& Back up battery) Wireless interconnected smoke alarm
SR-820PHWR-AC(AC Power& Back up battery) Wireless network & interconnected Smoke alarm(wireless network with alarm system and wireless interconnection with group detectors)
SR-820PHR Wireless Photoelectric Smoke alarm
please note:there are five types of this product. Please leave a message to us if you want. Thank you!
Main Features:
Wired or wireless interconnection function
Wireless network function
Auto-check malfunction
Infrared photoelectric sensor
MCU processing, eliminate false alarm
Photoelectric sensing technology
Dustproof, mothproof, anti-light interference design
Hush function
Lower battery indication
Execute criterion: EN14606; UL217
Technical specification:
Model No. | SR-820PHS | SR-820PHM-AC | SR-820PHW-AC | SR-820PHWR-AC | SR-820PHR |
Operating voltage | 9V battery | AC110/220V(9V backup battery) | AC110/220V(9V backup battery) | 9V battery | |
Interconnection | N/A | Up to 40 pc smoke detectors | Install within the radius of 200 m | N/A | |
Hush function | YES | YES | YES | YES | YES |
Code form | N/A | N/A | 2262 | 2262/1527 | 2262/1527 |
Sending frequency | N/A | N/A | 433MHz | 433MHz/315MHz | 433MHz/315MHz |
Radio distance | N/A | N/A | 200 m(open area) | 200 m(open area) | 200 m(open area) |
Sensitivity | 2.06%ft±1.3%ft | 2.06%ft±1.3%ft | |||
Sound level | 85dB/3m | 85dB/3m | |||
Installation | Wall or Ceiling mounted | Wall or Ceiling mounted | |||
Working environment | -10ºC~+50ºC(≤95%RH No congelation) | -10ºC~+50ºC(≤95%RH No congelation) | |||
Dimension | 128*38mm | 128*38mm |
Product Pictures:
Company Information:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,Bluetooth module etc
FAQ
Q1. Can I get one sample for test before big order?
A: Sure,you can. Please leave a message we will contact you soon.
Q2. Can I get the item less than MOQ?
A: Yes, you can and the final price will depend on your quantity.
Q3. Can I print my logo on the item?
A: Yes, please contact us.
Q4, What's the lead time when I place order?
A: Small Qty order needs5-7 working days, big Qty order usually needs 7-20 working days after payments arriving. That's depends on order Qty.
Q5,How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
